Alloy 316/316L (UNS S31600/S31603) is a chromium-nickelmolybdenum austenitic stainless steel developed to provide improved corrosion resistance to Alloy 304/304L in moderately corrosive environments. It is often utilized in process streams containing chlorides or halides. The addition of molybdenum improves general corrosion and chloride pitting resistance. It also provides higher creep, stress-to-rupture and tensile strength at elevated temperatures.
It is common practice for 316L to be dual certified as 316 and 316L. The low carbon chemistry of 316L combined with an addition of nitrogen enables 316L to meet the mechanical properties of 316.
Alloy 316/316L resists atmospheric corrosion, as well as, moderately oxidizing and reducing environments. It also resists corrosion in polluted marine atmospheres. The alloy has excellent resistance to intergranular corrosion in the as-welded condition. Alloy 316/316L has excellent strength and toughness at cryogenic temperatures.
Alloy 316/316L is non-magnetic in the annealed condition, but can become slightly magnetic as a result of cold working or welding. It can be easily welded and processed by standard shop fabrication practices.
In most applications Alloy 316/316L has superior corrosion resistance to Alloy 304/304L. Process environments that do not corrode Alloy 304/304L will not attack this grade. One exception, however, is in highly oxidizing acids such as nitric acid where stainless steels containing molybdenum are less resistant. Alloy 316/316L performs well in sulfur containing service such as that encountered in the pulp and paper industry. The alloy can be used in high concentrations at temperatures up to 120°F (38°C).
Alloy 316/316L also has good resistance to pitting in phosphoric and acetic acid. It performs well in boiling 20% phosphoric acid. The alloy can also be used in the food and pharmaceutical process industries where it is utilized to handle hot organic and fatty acids in an effort to minimize product contamination.
Alloy 316/316L performs well in fresh water service even with high levels of chlorides. The alloy has excellent resistance to corrosion in marine environments under atmospheric conditions.
The higher molybdenum content of Alloy 316/316L assures it will have superior pitting resistance to Alloy 304/304L in applications involving chloride solutions, particularly in an oxidizing environment.
In most instances, the corrosion resistance of Alloys 316 and 316L will be roughly equal in most corrosive environments. However, in environments that are sufficiently corrosive to cause intergranular corrosion of welds and heat-affected zones Alloy 316L should be used because of its low carbon content.
Other Grades:
201,202,21-4N,301,302,301L,303,303Se,304,304L,304H,304LN,304N,305,S38400,308,309,309S,310,310s,
316,316L,316H,316Ti,316N,316LN,317,317L,317LMN,317LN,321,321H,347,347H,S3100,S31803,S3205,
S32304,S31200,S31260,S32507,405,409,429,430,430F,434,444,403,410S,410,416,420,420F,431F,440A
440B,440C,440F,610,630,631,632,635,660,Alloy 200,Monel 400 ,Alloy K-500 ,Inconel 600 , Incconel 601,
Inconel 625 , Inconel 718 , Alloy 800 ,Alloy 800H,Alloy 800HT,Inconel 825,Alloy 276, Alloy 20, Alloy 59
| Tianjin Zhongyantiancheng Steel Co.,Ltd | ||||
| Commodity | Stainless Steel Plate/Stainless Steel Sheet | |||
| Material | 316 | |||
| Standard | GB | Â JIS | ASTM/ASME | DINÂ |
| 06Cr17Ni12Mo2 | SUS316 | 316 | 1.4401 | |
| Chemical Composition | C | Mn | P | S |
| ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | |
| Si | Cr | Mo | Ni | |
| <=0.75 | 16--18.5 | 2--3 | 10--14 | |
| Thickness | 0.3mm--16mm(cold rolled) 3mm--280mm(hot rolled) | |||
| Width | 1000mm--2200mm | |||
| Length | 1000mm-6000mm, as customers' request | |||
| Surface | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D | |||
| manufacture | Hot Rolled/Cold Rolled | |||
| Packing | Packed in bundles with standard export sea-worthy package | |||
| Delivery Time | Within 15 working days, according to customers' quantities | |||
| Quality | High Quality.SGS inspection is accepted if needed | |||
| Place of Origin | Tianjin | |||
| Productivity | 500 MT/Month | |||
| Payment | T/T,L/C | |||
| MOQ | 1 MT | |||
| Application | pressure vessels, tanks, heat exchangers, piping systems,PVF,Pulp and Paper | |||
| Note | We can also do other materials | |||
3:Stainless Steel Plate Process:
4:Stainless Steel Plate Package:
5:About us:
Tianjin Zhongyantiancheng Steel Co.,Ltd(short for ZYTC ) is a professional manufacturer and exporter of steel products in China, located in Tianjin Beichen District, having the biggest port in North China.
With 20 years of development, the group has become the leader in steel, product variety, complete specifications and so on in North China market, large inventories more than 100,000 tons are maintained all the time.
ZYTC is specialized in steel products, especially Stainless steel pipe,Stainless steel bar,Stainless steel plate (TG,KSK,BG,Krupp), Round bar(SHOUGANG,DAYE), Spiral pipe(LIDA), Aluminum steel plate,Aluminum pipe ,Copper and so on .Â
ZYTC has cooperated with Tianjin Seamless Steel Tube Plant(TPCO), Baotou Steel Pipe Plant, Chengdu Steel Pipe Plant, Anshan Steel Pipe Plant,Baoshan Steel Pipe Plant and other steel pipe plants.Round bar cooperated with Beijing shougang goup,Tonggang steel group, Daye steel bar group ,Benxi bengang group an so on , Baotai titanium group,Baoji Lixing group,Stainless steel plate cooperated with Shanxi TAIGANG Steel Plate grouop,Baogang group,Shanghai Kelubo group ,and Puxiang steel group. all these corporations mentioned above are our shareholder partners.Â
ZYTC principle is: supplying the best products and service,being the best supplier.
The company can make steel product according to particular specifications and materials. ZYTC will perfect our quality management system and supply products of high quality to our customers.
We are all looking forward to establishing business relationships with customers all over the world!
6:Why choose us?
* More than 20 years experience in stainless and aluminum steel fields.
* Samples available.
* Specialist metallurgic advice and flexible service.
* High level of expertise, in-depth product knowledge.
* Competitive price, high quality,rich experiences and high reputation
* Delivered on time.
* Good after-sale service.
* Well recognized and trusted by customers.
7: Other productions:
Â
Our hydraulic cable cutter is suitable for cutting down the copper, aluminum, or other metal cables. Its item number is 21437. This product weighs 10.9kg and its shear force reaches 100kN. The maximum diameter of applicable cable is 105mm.
This cutter can be connected with Manual Pump through quick coupling, which makes our product possess light weight and also makes the operating position unlimited. This manual pump is purchased additionally with the item number of 16162 or 16163.
This dual-purpose cable stripper is capable of cutting off the semi-conducting layer as well as the insulating layer with the voltage of 110kV or below.

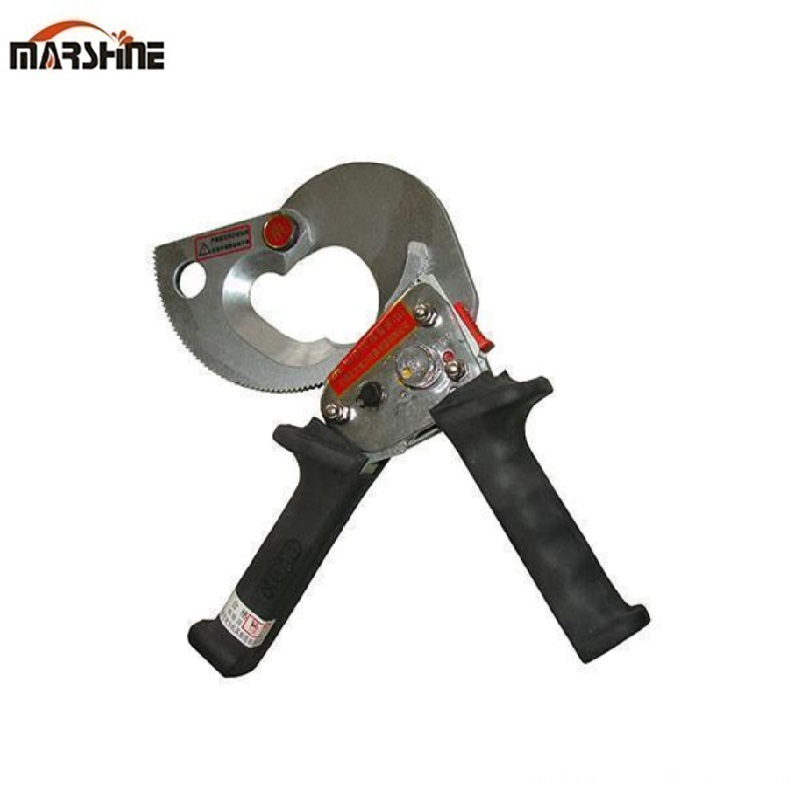

Ratchet Cable Cutter, Ratchet Cable Scissors, Hydraulic Cable Shear, Insulated Conductor Stripper, Cable Sheath Slitter, Insulationn Sharpener.
