Designers working in post and telecommunications and communication units often need to process tables with a large amount of data in Zhongwang CAD software. Because the form function of Zhongwang CAD software itself is not very powerful, and the powerful form plug-in, its operation is often not as smooth as Excel and WPS forms. So we naturally think of it, edit the data in Excel, and then copy and paste directly into the Zhongwang CAD software. This method works, and everyone has been doing this all the time.
I. Zhongwang CAD2011 and WPS2012 and Excel2007
Let's first take a look at the compatibility of Zhongwang CAD2011 with two tables:
1. Open the sample table with WPS2012, copy the relevant data, and then perform “selective paste†in Zhongwang CAD2011. The result is shown in Figure 4. We can't paste the copied content into Zhongwang CAD2011 in the form of "WPS Form Object". Instead, you can only paste static objects such as "bitmap" and "ZWCAD Entities" into Zhongwang CAD2011.
In this way, we can't edit these static objects by double-clicking them in Zhongwang CAD2011.
2. Open the sample table with Excel2007, copy the relevant data, and then perform “selective paste†in Zhongwang CAD2011. The result is shown in Figure 5. We can paste the copied content into Zhongwang CAD2011 in various ways including "MSExcel2003".
Second, how to do WPS2012 and CAD interaction?
The above is the problem of WPS2012 and CAD interaction. The reason for the problem is that the WPS data source software side is difficult to solve directly. Therefore, we can only solve the problem by bypassing the direct paste method.
Next we look at the solution:

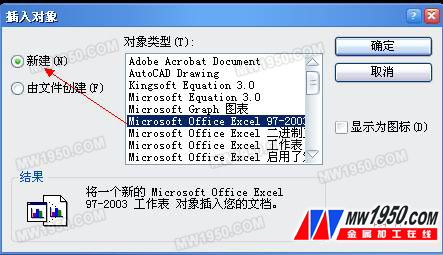

Step 1: Open the drawing that needs to be inserted into the table in Zhongwang CAD2011, create a new ole object, and select Microsoft office excel 97-2003. As shown in Figure 6
